Name: 1X4 CWDM Components Optical Fiber WDM FWDM High Performance
Brand: GaPho
Price: 1 USD

Brand Name : GaPho

Model Number : 1X4 CWDM Module

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton

Pass Band(nm) : ≥±6.5

Channel Ripple(dB) : <0.3

Polarization Dependent Loss(dB) : <0.20

Return Loss(dB) : >45

Contact Now

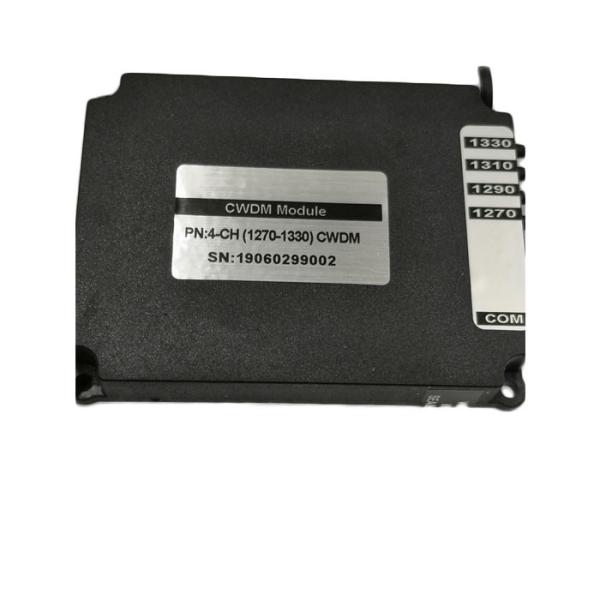

1X4 CWDM Module Optical Fiber WDM FWDM

Parameter
Operating Wavelength(nm)		1270	1290	1310	1330
Insertion Loss (dB)		0.56	0.75	0.89	1.15
Pass Band(nm)		≥±6.5
Channel Ripple(dB)		<0.3
Polarization Dependent Loss(dB)		<0.20
PMD(ps)		<0.20
Isolation	Adjacent(dB)	>30
	Non-adjacent(dB)	>45
Directivity(dB)		>50
Return Loss(dB)		>45
Fiber Length(m)		1
Fiber Type		SMF-28e with 0.9mm Loose Tube
Connector Type		FC/UPC
Operating Temperature		-20~+70℃
Storage Temperature		-40~+85℃
Package Dimension		80X60X12

Product Tags:

Optical Fiber CWDM Components
